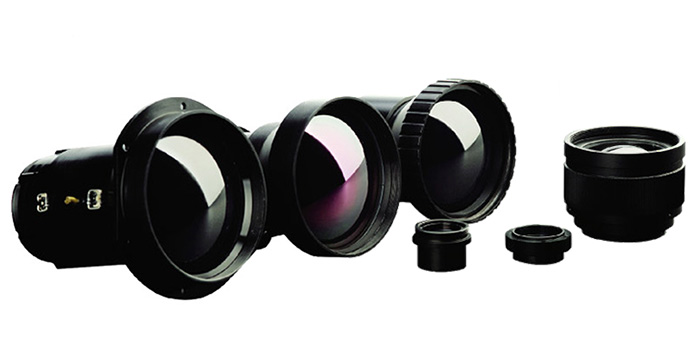

Infrared Lens Series
- Product Description
We can design(Optical system design and structure design) and manufacture various Series cooled and Uncooled infrared optical lens (Fixed focal lens, zoom lens, Continuous zoom lens, athermalized lens, super large focal length lens, super wide FOV lens),and high performance eye pieces.
|
Number |
Infrared Lens Model |
Focal Length (mm) |
F/# |
Detector |
Spectral Response (μm) |
Remark |
|
1 |
GL1F/1-5 |
5 |
1.0 |
120×120-25 |
8～12 |
Optical Athermalisation |
|
2 |
GL1F/1-8 |
8 |
1.0 |
336×256-25 |
8～12 |
Optical Athermalisation |
|
3 |
GL1F/1-9.6 |
9.6 |
1.0 |
336×256-25 |
8～12 |
Optical Athermalisation |
|
4 |
GL1F/1-11 |
11 |
1.0 |
384×288-25 |
8～12 |
Optical Athermalisation |
|
5 |
GL1F/1-27 |
27 |
1.0 |
384×288-25 |
8～12 |
Optical Athermalisation |
|
6 |
GL1F/1-35 |
35 |
1.0 |
640×480-17 |
8～12 |
Optical Athermalisation |
|
7 |
340/F1.0 |
40 |
1.0 |
384×288-20 |
8～12 |
Optical Athermalisation |
|
8 |
GL1F/1-50 |
50 |
1.0 |
640×480-25 |
8～12 |
Optical Athermalisation |
|
9 |
GL1F/1-50A |
50 |
1.0 |
384×288-25 |
8～12 |
Optical Athermalisation |
|
10 |
GL1F/1-8B |
8 |
1.0 |
640×480-17 |
8～12 |
Mechanical Athermalisation |
|
11 |
GL1F/1-15A |
15 |
1.0 |
640×480-17 |
8～12 |
Mechanical Athermalisation |
|
12 |
GL1F/1-25C |
25 |
1.0 |
640×480-17 |
8～12 |
Mechanical Athermalisation |
|
13 |
GL1F/1-35A |
35 |
1.0 |
640×480-17 |
8～12 |
Mechanical Athermalisation |
|
14 |
GL1F/1-50B |
50 |
1.0 |
640×480-17 |
8～12 |
Mechanical Athermalisation |
|
15 |
GL1F/1-5A |
5 |
1.0 |
384×288-25 |
8～12 |
Manual-focus |
|
16 |
GL1F/1-6.8 |
6.75 |
1.0 |
420×315-25 |
8～12 |
Manual-focus |
|
17 |
GL1F/1-8A |
8 |
1.0 |
420×315-25 |
8～12 |
Manual-focus |
|
18 |
GL1F/1-14 |
14 |
1.0 |
320×240-25 |
8～12 |
Manual-focus |
|
19 |
GL1F/1-15 |
15 |
1.0 |
384×288-17 |
8～12 |
Manual-focus |
|
20 |
GL1F/1-19 |
19 |
1.0 |
384×288-25 |
8～12 |
Manual-focus |
|
21 |
GL1F/1-25 |
25 |
1.0 |
384×288-25 |
8～12 |
Manual-focus |
|
22 |
BLST250/1.0 |
48 |
1.0 |
160×120-30 |
8～12 |
Manual-focus |
|
23 |
DF50/F1.0 |
50 |
1.0 |
640×512-17 |
8～12 |
Manual-focus |
|
24 |
GL1F/1-55 |
55 |
1.0 |
384×288-25 |
8～12 |
Manual-focus |
|
25 |
DF65/F1.3 |
65 |
1.3 |
640×512-17 |
8～12 |
Manual-focus |
|
26 |
GL1F/1-75 |
75 |
1.0 |
384×288-25 |
8～12 |
Manual-focus |
|
27 |
DF102/F1.2 |
102 |
1.2 |
384×288-20 |
8～12 |
Manual-focus |
|
28 |
GL1F/1-25A |
25 |
1.0 |
384×288-25 |
8～12 |
Electric Focus |
|
29 |
GL1F/1-40A |
40 |
1.0 |
384×288-25 |
8～12 |
Electric Focus |
|
30 |
DF-55/1 |
55 |
1.0 |
336×256-25 |
8～12 |
Electric Focus |
|
31 |
DF60/1 |
60 |
1.0 |
640×480-17 |
8～12 |
Electric Focus |
|
32 |
GL1F/1-75A |
75 |
1.0 |
384×288-25 |
8～12 |
Electric Focus |
|
33 |
GL1F/1-100 |
100 |
1.0 |
640×512-25 |
8～12 |
Electric Focus |
|
34 |
GL1F/1-150 |
150 |
1.0 |
640×512-25 |
8～12 |
Electric Focus |
|
35 |
GL5F/1-25～100 |
25～100 |
0.9～1.05 |
336×256-17 |
8～12 |
Continuous Zoom |
|
36 |
GL2F/1.1-41.5/124.6 |
41.5/124.6 |
1.1 |
384×288-17 |
8～12 |
Electric Double FOV |
|
37 |
GL2F/1-43/86 |
43/86 |
1.0/1.15 |
384×288-25 |
8～12 |
Electric Double FOV |
|
38 |
GL2F/1.4-42/84 |
42/84 |
1.4 |
640×512-17 |
8～12 |
Electric Double FOV |
|
39 |
37.8F1-3.5× |
—— |
1.0 |
640×512-25 |
8～12 |
3.5×Balow |
|
40 |
37.8F1-4× |
—— |
1.0 |
640×512-25 |
8～12 |
4×Balow |
|
41 |
GV19 |
19 |
O Cular |
|||
