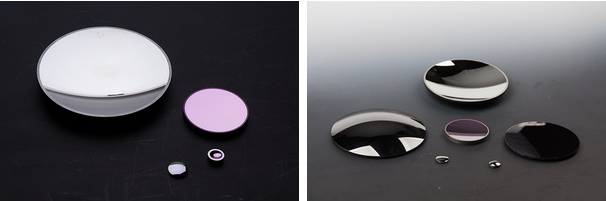

Infrared Machining---Coating
- Product Description
| Product Attribute | |
| Manufacture: | Germanium、Silicon、ZnSe(Zinc Selenide)、ZnS(Zinc Sulfide)、Aluminum、Copper、Nickel、Nickel-Copper、Calcium fluoride、Chalcogenide Glass、PMMA Optical Plastic and PC. |
| Coating： | Infrared Antireflection Coatings（AR Coating）、Diamond-like Carbon Coating（DLC Coating）、High Laser-Demage Resistance Coating、Multifarious Filter（For example: IR-CUT）、Full wave infrared AR Coating(3-12μm)> |
| Application： | Apply to various kinds of Infrared Lens |
| Specification (mm)： | According to Customer Demand |
| Application： | 5-+∞ |
| Diameter tolerance： | ±0.05 |
| Center Thickness Tolerance： | ±0.02 |
| Surface Quality： | ≤3nm |
| Surface Accuracy： | Rt≤0.5µm，Ra≤0.04µm |
| Irregularity： | ≤0.5 |
| Centering： | ≤1＇ |
| Total Thickness Tolerance： | ±0.02 |
| Sag of Concave： | ±0.02 |
| Transmittance（3µm-5µm）： | TAV≥98%（Double-side AR Coating）；TAV≥95%（AR Coating +DLC Coating） |
| Transmittance（8µm-12µm）： | TAV≥97%（AR Coating +AR Coating）；TAV≥90%（AR Coating +DLC Coating） |
