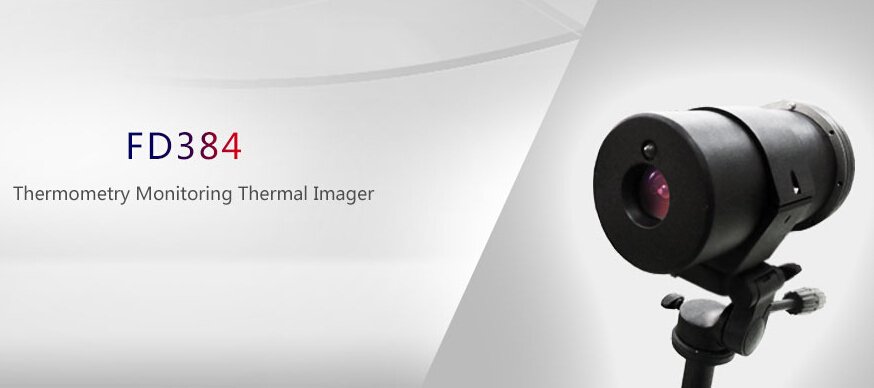

Thermometry Monitoring Thermal Imager
- Product Description
FD384 Thermometry Monitoring Thermal Imager is using the international advanced high sensitivity uncooled detector, with a compact and stable imaging circuit, high-protection (IP65) constructional design. The infrared image of this product has the characteristics of low noise, high frame rate, high resolution, high temperature measurement accuracy, low power consumption, stability and reliability, easy-operating. It is suitable for very early fire alarm in both inside and outside warehouse of tobacco, food and coal yard.
|
Technical Parameters |
|
|
Detector type |
FPA uncooled detector |
|
Detector specification |
384×288-17μm |
|
Spectral Response |
8～14μm |
|
Lens |
27mm/F=1.0 non-thermalization lens |
|
NETD |
0.06℃ |
|
Temperature measuring range |
0℃～600℃（can extend to1500℃） |
|
Temperature measuring accuracy |
±2℃（≦100℃），±2%（﹥100℃） |
|
Frame rate |
25Hz（PAL） |
|
Interface |
RS485control interface, multipath alarm signal output |
|
Video format |
PAL |
|
Function |
Multi-zone and multi-point thermometry，multi-stage temperature alarm threshold setting |
|
Protection grade |
IP67 |
|
Operating temperature |
-40℃～+60℃ |
|
Powder supply |
DC12V-36V、＜5W |
|
Weight |
2.3kg |
|
Size |
250(L)×120(W)×130(H max)mm |
